Model: CFQG-SK-200
Product Performance
Inner Diameter: 50-120mm
Wall Thickness: 2-5mm
Mother Tube Length: 1200mm
Cutting Tube Length: 40-300mm
Cutting Blades: 6 pieces on machine
Working Speed: 4-5 mother tubes/min.
Tube Loading: Automatically
Tube Unloading: Automatically

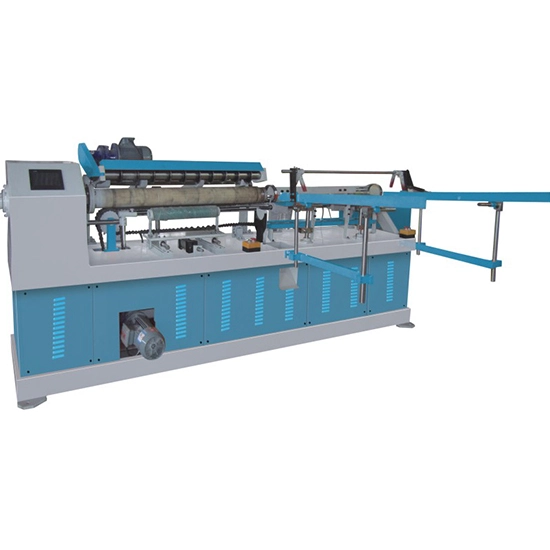

Automatic Multi Knives Paper Cardboard Tube Core Cutting Making Machine is an automated cardboard tube core cutting and manufacturing equipment. This equipment uses multi-blade cutting technology to quickly and accurately cut cardboard tubes of different specifications and qualities. This machine is suitable for producing various types and specifications of paper tubes, such as textile cores, tape cores, film cores and other industrial paper tube cores.
| Model | CFQG-SK-200 |
| Inner Diameter | 50-120mm |
| Wall Thickness | 2-5mm |
| Mother Tube Length | 1200mm |
| Cutting Tube Length | 40-300mm |
| Cutting Blades | 6 pieces on machine |
| Working Speed | 4-5 mother tubes/min. |
| Tube Loading | Automatically |
| Tube Unloading | Automatically |
This machine adopts PLC control, and the human-machine interface is a touch screen, which is simple to set up and easy to operate.
Both original tube loading and finished tube unloading are automatic.
All brands of components, such as motors, frequency converters, PLCs, touch screens, etc., can be customized as required.
